Deminers, dogs and machines are used in the process of demining.

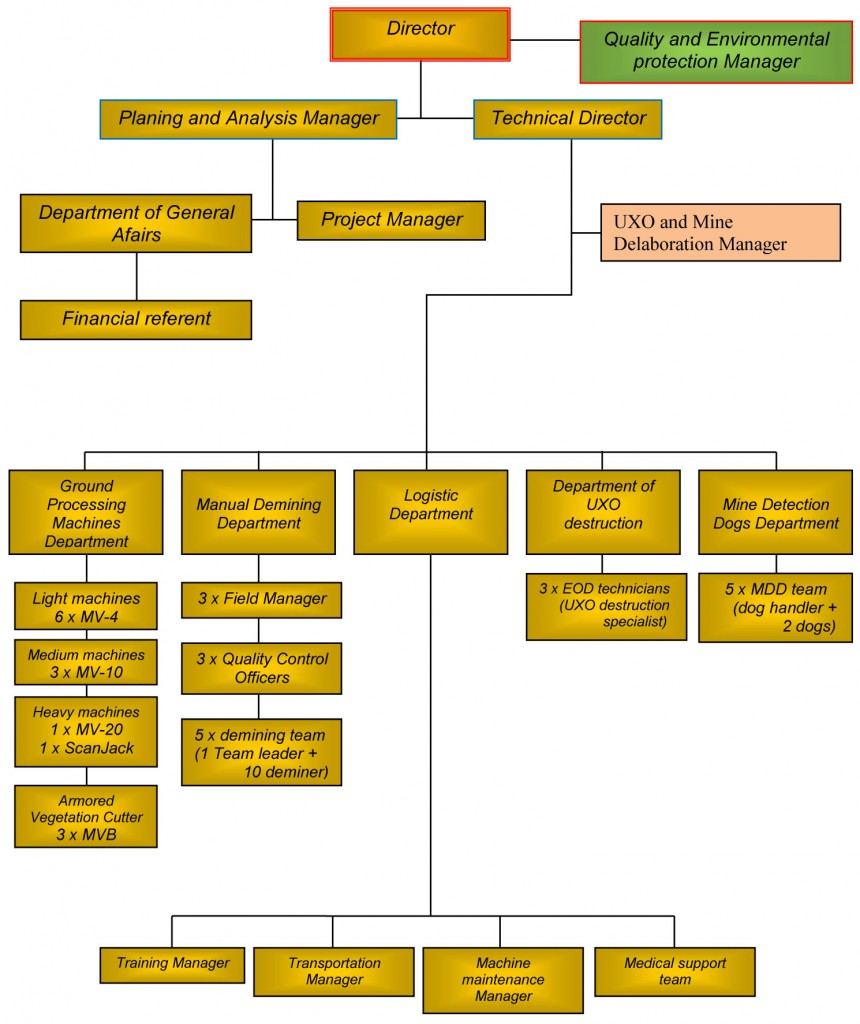

There are approximately 80 regular employees from Croatia and 40 deminers in company DOK-ING DEMINING Bosnia and Herzegovina.

In its „Tool Box“ the Company has: 20 vehicles for personnel transport, 2 trucks for transport of demining machines, 122 metal detectors, 20 magnetic locators, 4 magnetometers with data logger and 140 personnel protective equipment and 2 ambulances with doctors, paramedics and drivers.

Apart from 5 dog teams the Company has at its disposal 14 demining machines:

• 2 Heavy Flails (MV-20 and Scanjack 3500),
• 3 Medium Flails (MV-10),
• 6 Mini Flails (MV-4) and
• 3 Armored Vegetation Cutters/Excavators (MVB type).

Their characteristics are:

MV-4 Mini Flails

  • Dimensions (L x W x H) mm3.005 x 1.530 x 1.470
  • Weight – 5.310 kg
  • Engine – Perkins 1106D-E66TA, 186 kW
  • Digging depth
  • Maximum depth – 320 mm
  • Average depth – 200 mm
  • Clearance capacity – 4.000 m2/h



image019 MV-10 Medium Flails

  • Dimensions (L x W x H) mm 6.860 x 2.792 x 1.900
  • Weight – 16.000 kg
  • Engine – CATERPILLAR C18,     571 kW
  • Digging depth
  • Maximum depth – 600 mm
  • Average depth – 350 mm
  • Clearance capacity – 6.000 m2/h



image020 MV-20 Heavy Flails

  • Dimensions (L x W x H) mm 8.500 x 4.000 x 2.600
  • Weight – 33.000 kg
  • Engine – Perkins 3000, 663 kW
  • Digging depth
  • Maximum depth – 600 mm
  • Average depth – 400 mm
  • Clearance capacity – 7.000 m2/h



image021 Scanjack 3500 – Heavy Flails

  • Dimensions (L x W x H) mm 14.300 x 4.450 x 3.700
  • Weight – 32.000 kg
  • Engine – Scania V8, 407 kW
  • Digging depth
  • Maximum depth – 350 mm
  • Average depth – 250 mm
  • Clearance capacity – 7.000 m2/h



image022 MVB 006 – Armored Cutter/Excavator

  • Dimensions (L x W x H) mm 17.800 x 3.300 x 4.000
  • Weight – 44.000 kg
  • Engine – Liepherr, 106 kW
  • Digging depth
  • Maximum depth – 250 mm
  • Average depth – 120 mm
  • Clearance capacity – 1.000 m2/h

When operating on a medium/heavy to heavy terrain the machines are capable of clearing from 130.000 to 200.000 m2/day in a 10 hours shift.



            This figure can be higher several times in case of operating on an easy or sand terrain.



            It is important to emphasize that all equipment is regularly tested annually by CROMAC-CTDT (CROMAC – Centre for Testing Development and Training) .
